OiDA175175-16000-15C-22.8 Drone Battery 22.8V 16000mAh 100A Peak Discharge 300 Cycles

Product Name

High-Performance 6S1P 22.8V 16000mAh Lithium Polymer Drone Battery

Advantages

• Optimized for high-power drone applications with 15C discharge capability.
• Lightweight design (1780g) for improved flight efficiency.
• Extended cycle life for long-term reliability.

Specifications

Cycle Life

Discharge Curve

• 100A Discharge: ≥5.4 minutes to 19.2V after standard charge.
• Low-Temp Performance: ≥75.1% capacity at -20°C (0.2C discharge).

Operating Temperature Range

Certifications

• Complies with RoHS and UN38.3 safety standards.

Key Features

• Ultra-Fast Charging: Fully charges in 1.5 hours (10A) or 3 hours (5A).
• High-Temp Stability: 95% capacity recovery after 60°C storage.
• Low Self-Discharge: ≤15% capacity loss after 28 days at 23°C.

Applications

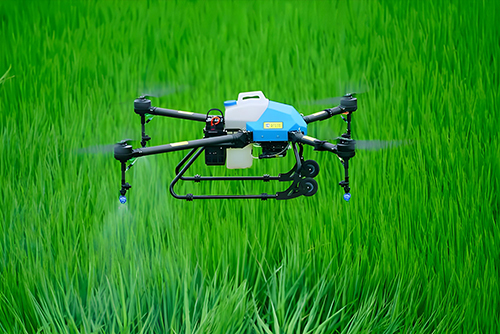

• Heavy-lift drones, industrial UAVs, and high-endurance aerial photography.
•

Usage Warnings & Precautions

• Charging: Use CC/CV chargers (max 26.1V). Reverse polarity prohibited.
• Discharging: Avoid >100A currents or temperatures <-20°C/＞60°C.
• Physical Handling: Protect aluminum casing from sharp objects.

Storage Guidelines

• Short-term: Store at 22.5V–23.1V (20°C).
• Long-term: Maintain 21.6V–23.4V; activate every 3 months (0.2C cycle).

Warranty & Disclaimer

• Warranty void if modified or misused (overcharge, puncture, etc.).
• Not liable for accidents caused by improper operation.
